S-Locus (White Spotting, Piebald)

White markings are caused by a lack of pigment in certain areas. Minimal to extensive white spotting patterns are often created by variation at the S-Locus. Phenotypes with white spotting range from minimal white markings to piebald patterns or extreme white.

What is White Spotting?

White markings in a dog’s coat are caused by a lack of pigment cells in these areas. The dog can’t produce any pigment during hair growth and the hair in affected areas remains white.

The Spotting Locus affects how far pigment cell precursors will migrate from the neural crest to cover the dog’s body during embryonic development.

The dog’s back and head are good at keeping pigment while more remote body areas like the tail, chest and feet are the first to lose their color.

So, white spotting follows a certain pattern, it does not add white in totally random spots. But it is also influenced by stochastic events which creates a whole range of possible outcomes.

The diversity of white spotting patterns causes phenotypes from minimal white markings to piebald patterns and can even produce a predominantly or completely white coat.

White spotting can occur “on top” of any pattern a dog would normally have expressed. A white coat inhibits the expression of any pigment pattern and can hide a dog’s true phenotype.

What causes White Spotting?

The Spotting-Locus was located at the MITF gene (Microphthalmia-Associated Transcription Factor) on dog chromosome 20. Among other things, MITF plays a role in the development, survival, and function of pigment cells.

Mutations at the spotting locus affect the migration and survival of melanoblasts. This causes an absence of pigment cells in certain areas and creates tiny or extended white markings.

But for now, we don’t know exactly what causes different phenotypes like Irish spotting, piebald spotting or extreme white. Theoretical alleles at the S-Locus (sⁱ = Irish spotting, s^p = piebald s^w = Predominantly white coat) have never been proven as causal for different spotting patterns.

We know of several different mutations in the regulatory regions of the MITF gene.

It seems likely that haplotype effects (different combinations of certain mutations in the MITF gene) and maybe some yet unidentified modifying genes are the real reasons behind different patterns^[1].

But further research is still needed to understand the mechanisms behind different versions of white spotting (and maybe make them testable).

The s^p Allele

The s^p variant represents a short interspersed nucleotide element (SINE) which in many breeds is associated with piebald spotting^[4]. At the moment s^p is the only allele we can test for at the S-Locus. But in some dogs (e.g. northern breeds) testing for s^p doesn’t work reliably.

Solid coat (S) seems to have incomplete dominant control over piebald (s^p). This causes a dosage-dependent expression where dogs with one copy (S/s^p) on average produce less white than homozygous dogs (s^p/s^p).

As a rule of thumb, one copy of piebald (S/s^p) can cause very limited up to moderate white spotting while two copies (s^p/s^p) cause more white which can in some cases cover most of the dog^[4].

But the interpretation of piebald test results is breed-specific. And selective breeding for certain patterns affected the expression of piebald phenotypes in certain breeds.

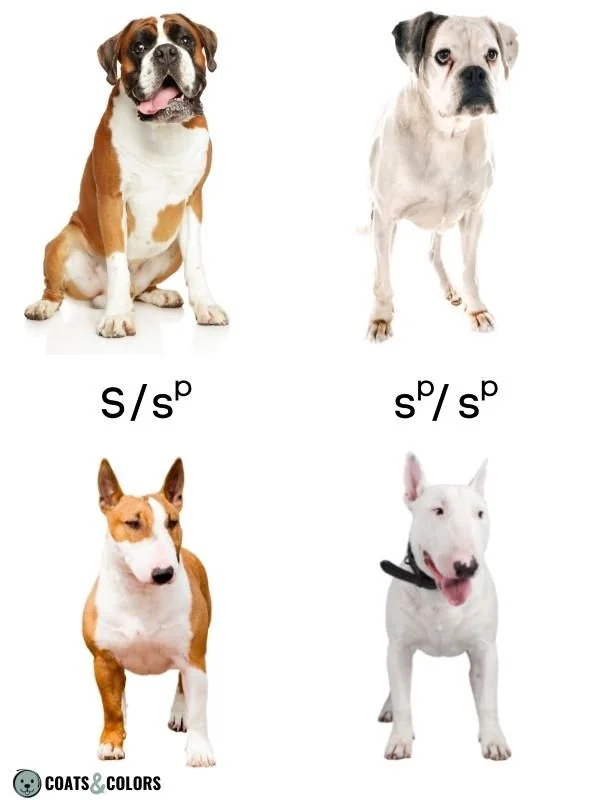

In many dog breeds like Bull Terriers or Boxers, S/s^p will be expressed as a mantle pattern (also called flashy, tuxedo, etc.) while two copies (s^p/s^p) result in a predominantly white coat. This can be very surprising for breeders who didn’t realize that their dogs were in fact white-factored (S/s^p) and able to produce all-white puppies.

Dogo Argentinos, Australian Cattle Dogs, English Setters or Dalmatians only come in extreme white, and almost all of them test as s^p/s^p.

But in other dog breeds, dogs with S/s^p are almost solid or show a very minimal white pattern expression while only s^p/s^p produces some white spotting.

And some randomness, unknown modifiers, or interaction with untestable white spotting patterns can have an additional influence on any s^p-related spotting pattern.

S Locus Calculator

This simple tool can help you predict different S Locus combinations. Sure, we don’t know much about what controls the extent of white markings but it’s better than nothing:

White Spotting Phenotypes

Normally, the precursors of pigment cells migrate from the neural crest to certain areas called pigment centers during embryonic development.

These centers can be found at the base of the neck and tail, the top of the head, or the ears. From there, pigment cells follow certain paths to eventually cover the rest of a dog’s body.

White spotting happens if something interferes with the journey of young pigment cells. And the first areas to be affected are usually the last areas where pigment cells would have arrived.

This can create all kinds of looks from minor to extreme white spotting. There are many phenotypes in between that cause distinct looks, many of them favored in certain dog breeds.

Fun fact: Dogs with a recessive red (e/e) or domino (e^A, e^G) coloration tend to have on average more white than their siblings with other color patterns. These E locus alleles may have an additional detrimental effect on the production of pigment cells.

Residual White

Small white spots on the chest or white toes are called residual white. White areas are always the biggest at birth and get smaller while the dog grows, so some thin white stripes on the chest often disappear.

This can happen on any dog and is oftentimes simply caused by a hiccup during pigment cell migration. Some dog breeds seem to have a predisposition for untestable minor white spotting.

Residual white can occur without a genetic cause. Sometimes, however, it can be passed on, so breeders of exclusively solid-colored breeds like Labradors usually try to select against it.

Irish Spotting

True Irish spotting is not testable and is not the same as piebald spotting, affected breeds may test as solid (S/S) at the S-Locus. But Irish spotting is very common in a variety of breeds.

It creates a symmetrical pattern that includes white on the chin, muzzle, chest, belly, collar, lower legs and tail tip. In general, an Irish spotting pattern doesn’t cause too much face white by itself and only creates a white snip or very thin blaze.

Irish Spotting breeds true since all affected breeds seem to be homozygous for this trait. Dogs with Irish Spotting bred together always produce the same pattern in their offspring.

There are some breeds where at least some dogs have real Irish spotting. But many of these breeds can have additional white spotting patterns such as whitehead and piebald in their gene pool.

Several breeds might in fact get their Irish-looking markings from selective breeding for restricted whitehead patterns. Most Border Collies, Corgis and Beardies come with Irish markings plus whitehead.

Think of Bernese Mountain Dogs with their wide blazes and a large white chest patch but with white on the paws not allowed to extend higher than the patterns.

So some of the breeds traditionally deemed “Irish-marked” might be something else:

• Alaskan Malamute
• Appenzeller Mountain Dog
• Australian Shepherd
• Basenji
• Bearded Collies
• Bernese Mountain Dog
• Border Collie
• Cardigan Welsh Corgi
• Chihuahua
• Chinook
• Collie
• Drever
• Dunker
• Entlebucher Mountain Dog
• Finnish Hound
• German Hound
• Gotlandstövare
• Hamiltonstövare
• Hygen Hound
• Karelian Bear Dog
• Lowchen
• Miniature American Shepherd Dog
• Nova Scotia Duck Tolling Retriever
• Norwegian Lundehund
• Old English Sheepdog
• Pembroke Welsh Corgi
• Podengo Portugues
• Shetland Sheepdog
• Siberian Husky
• Greater Swiss Mountain Dog

Since many of these breeds also come with whitehead or piebald markings their pattern may not always be caused by just Irish spotting. For example, many dogs with blazes that get wider on the forehead may express minor whitehead.

White-factored Border Collies for example express normal Irish markings but can have additional white on their hind legs, back, or tail caused by a piebald variant (S/s^p) which extends beyond the Irish white.

Flashy

White spotting usually starts to appear at the farthest areas from the neural crest. A more minimalistic expression can create a neat trim pattern with white only on the tip of the tail, the muzzle, paws or as a moderately sized chest patch.

If the white areas grow just a little bigger this can look very much like the untestable Irish pattern mentioned above. But many dog breeds that seem to have Irish spotting are in fact heterozygous piebald (S/s^p).

These dogs just produce a piebald pattern resembling Irish markings where the legs, muzzle, blaze, belly, tail and chest turn white.

This happens in Bull Terriers, Great Dane, Boxers or Frenchies. Oftentimes the white spotting in these breeds creates irregular patterns and will not look the same on every dog. Some breeds call pseudo-Irish markings a boston, irish pied, tuxedo, flashy or mantle pattern.

Piebald Pattern

In a piebald pattern, the white of the collar, legs and tail begins to extend to the dog’s back. This can create very irregular and somewhat random patterns.

Some breeds call this piebald, pied or random white. Shar Peis call it flower, Huskies call it splash coat, Cavaliers call it blenheim and Poodles call it abstract or parti depending on the amount of white.

Piebald can create very random-looking patterns with fully pigmented patches on a white base.

On dogs with extended white spotting, the whole back can be white with pigment only being retained in the original pigment centers at the neck or the base of the tail.

And piebald can create many irregular and asymmetric patterns.

Color Headed White

In some cases, dogs are born with no color left on the body and pigmented areas on their head only. These color-headed white dogs can have a wide blaze but the pigment around the ears is always there.

The head is usually the last area to lose pigment (this is what sets piebald apart from whitehead). A color-headed white pattern is found in many gundog breeds but also in terriers or toy and herding dogs.

Extreme White

Dog’s with extreme spotting are predominantly white but can still have some small patches of color on the back, the base of the tail, the ears or around the eyes. But when even the last bit of color on the head is missing a dog can get all white from extended piebald spotting.

White coat due to extreme piebald is very common in Bull Terriers, Frenchies, Dogo Argentino, English Setters, Dalmatians or Australian Cattle Dogs.

White spotting is caused by a general problem of pigment cells to survive and migrate during development. This affects not only pigment cells in the hair follicle but also the pigment cells that should have ended up in the eyes, ear or skin.

Extended white spotting is often associated with blue eyes, pink patches on the skin and nose or congenital deafness.

Whitehead

A pattern not related to white spotting is caused by a theoretical whitehead variant at a not yet identified gene locus.

Whitehead causes the color in a dog’s coat to disappear from the face rearwards.

This can create all kinds of patterns like split faces, white faces or hourglass blazes on an otherwise normally pigmented dog.

In more extreme cases, whitehead can extend beyond a dog’s neck and flanks and create a pattern very similar to piebald.

The most obvious difference is the tendency of piebald to keep head pigment even if the rest of the dog is white while whitehead specifically begins to add white on the face while the rest of the dog can still be fully pigmented.

Dog Breeds with White Spotting

Irish spotting and whitehead are not testable at the moment.

But the piebald variant s^p associated with white markings occurs in many, many different dog breeds. Here are some examples.

• American Cocker Spaniel
• American Staffordshire Terrier
• Australian Cattle Dog
• Basset Hound
• Beagle
• Border Collie
• Boxer
• Bracco Italiano
• Brittany
• Bulldog
• Cavalier King Charles Spaniel
• Chihuahua
• Chinese Crested Dog
• Clumber Spaniel
• Dachshund
• Dalmatian
• Dogo Argentino
• English Cocker Spaniel
• English Springer Spaniel
• Fox Terrier
• French Bulldog
• German Spitz
• Greyhound
• Havanese
• Icelandic Sheepdog
• Irish Red and White Setter
• Italian Greyhound
• Italian Spinone
• Jack Russell Terrier
• Large Munsterlander
• Lhasa Apso
• Longhaired German Pointer
• Newfoundland
• Parson Russell Terrier
• Pekingese
• Poodle
• Pointer
• Portuguese Water Dog
• Saint Bernard
• Saluki
• Sealyham Terrier
• Shar Pei
• Shorthaired German Pointer
• Small Munsterlander
• Spanish Water Dog
• Tibetan Spaniel
• Yorkshire Terrier
• Whippet
• Wirehaired German Pointer

Other Reasons for Spotting

There are many white spotting patterns not testable at the moment. This includes Irish spotting and Whitehead phenotypes which might not even be caused by MITF mutations.

And other traits can cause white areas in a dog’s coat even when no s^p allele is present:

If a dog has a very low phaeomelanin intensity he will have a completely white coat.

In this case, the coat is in fact fully pigmented just with a very light version of phaeomelanin. This is what happens in many all-white dogs like white Poodles, Samoyeds, or Westies.

Interestingly, dogs with a white shade of phaeomelanin can still have white spotting, e.g. American Eskimo Dog or Bichon Frisé. But of course, it’s nearly impossible to see cream-white patches on a white base color.

Domino patterns like ancient domino or grizzle in sighthounds tend to lighten phaeomelanin in any pattern. This can create some black-and-white phenotypes even if a dog actually had no or only minor white spotting.

Another trait creating very light phaeomelanin markings is the urajiro found in asian spitz-type breeds like Shiba or Akita. These breeds often express a version of countershading with very crips and very light markings on the belly, legs, chest, muzzle and eyebrows.

But these markings are not really white but just a very light shade of yellow.

A double merle phenotype causes a very extensive lack of pigment. Harlequin merle (M^h), being the longest merle allele, has on its own the ability to delete pigment and produce white patches.

Learn More

Creeping Tan

Black & Tan

Blue-Based Sable

Brown-Based Sable

Lilac-Based Sable

Black-Based Sable

Links

[1] Baranowska Körberg I, Sundström E, Meadows JRS, Rosengren Pielberg G, Gustafson U, Hedhammar Å, et al. (2014) A Simple Repeat Polymorphism in the MITF-M Promoter Is a Key Regulator of White Spotting in Dogs. PLoS ONE 9(8): e104363. https://doi.org/10.1371/journal.pone.0104363

[2] Karlsson, E., Baranowska, I., Wade, C. et al. Efficient mapping of mendelian traits in dogs through genome-wide association. Nat Genet 39, 1321–1328 (2007). https://doi.org/10.1038/ng.2007.10

[3] Brancalion, L., Haase, B., Willet, C.E., Wade, C.M. : Sequence variants of the canine melanocyte inducing transcription factor (MITF) locus reveal a common MITF-A processed pseudogene. Anim Genet 52:777-8, 2021. Pubmed reference: 34165209. https://doi.org/10.1111/age.13106

[4] Sheila M. Schmutz, Tom G. Berryere, Dayna L. Dreger. MITF and White Spotting in Dogs: A Population Study. Journal of Heredity, Volume 100. 2009. https://doi.org/10.1093/jhered/esp029
